Filtration

Features

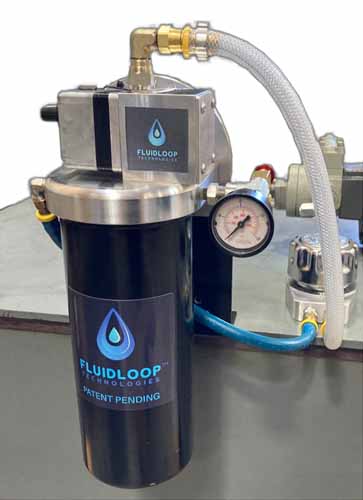

The FL-1000 is a simple, affordable, and compact Kidney Loop Filtration system, designed for gearbox and 0-50 gal hydraulic reser- voirs with an optional pump available for 50-100 gal reservoirs.


• Wall or equipment mount, or use with the optional Hand-Carry stand to allow portability from one piece of machinery to the next.
• Adjustable speed stainless-steel pump that can be adjusted to different viscosities of oil.
• Adjustable pump pressure setting (PSI) that can be adjust to different viscosities
• Low-flow rates of 0.05-0.45/gallons per minute (3-27/gallons per minute) *, that are ideal for gear boxes and 0-50 gal hydraulic reservoirs.
• Optional pump with flow rates up to 1gpm available for 50-100 gal reservoirs.
• Use factory supplied filters, or customers own spin-on filter of choice. Optional Filter Adapters allow use of different filters.
• Filter selections for both dirt and water removal.
• Clear Inlet/outlet hose for visual flow.
• Test port for fluid sampling. Standard 120v wall power with adapter.
• * Flow rates vary with pump selection, filter, viscosity and temperature of the oil.
